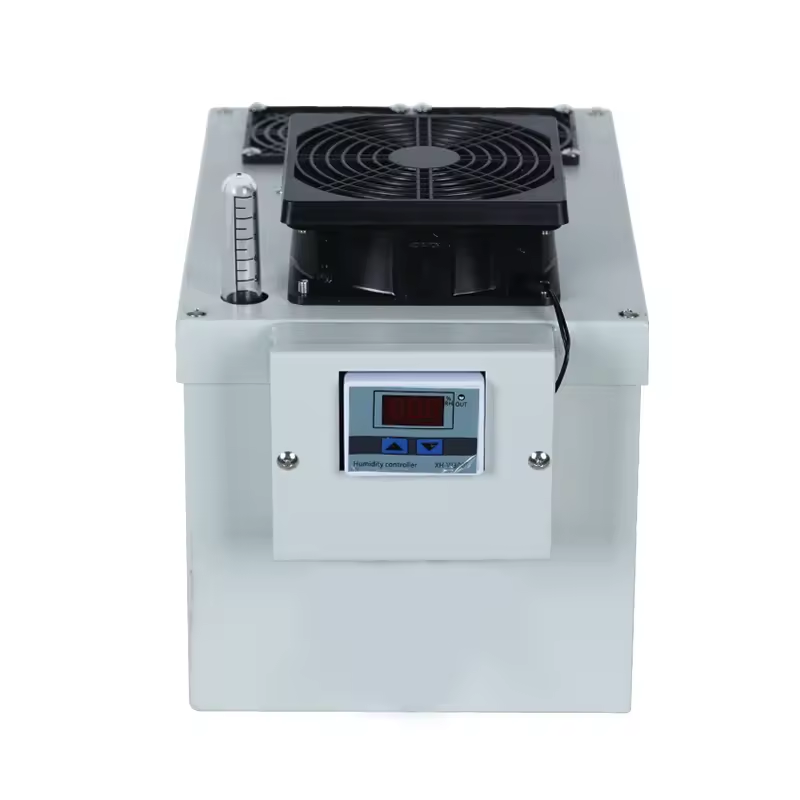

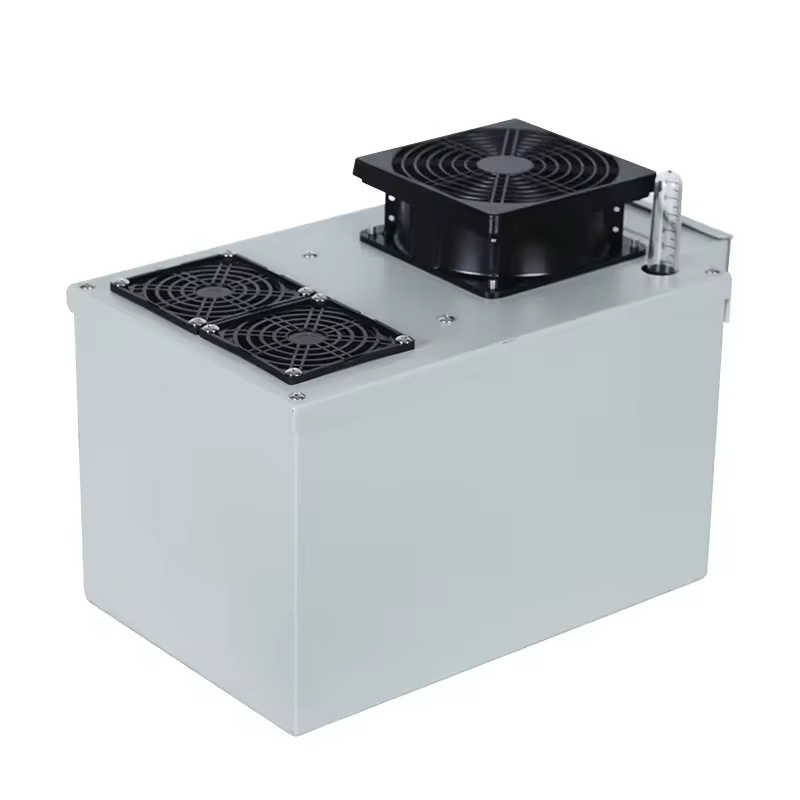

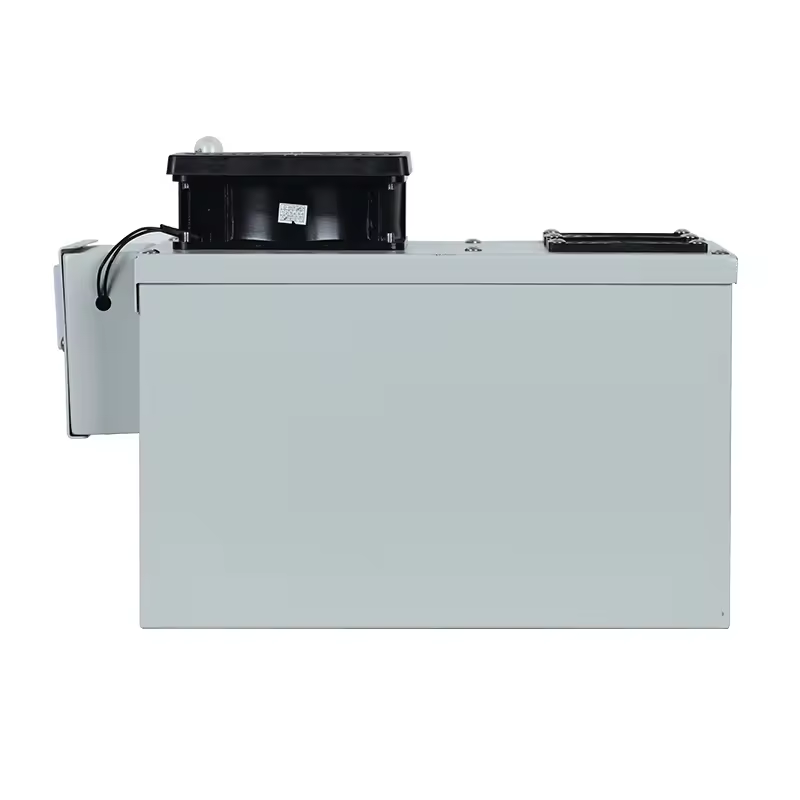

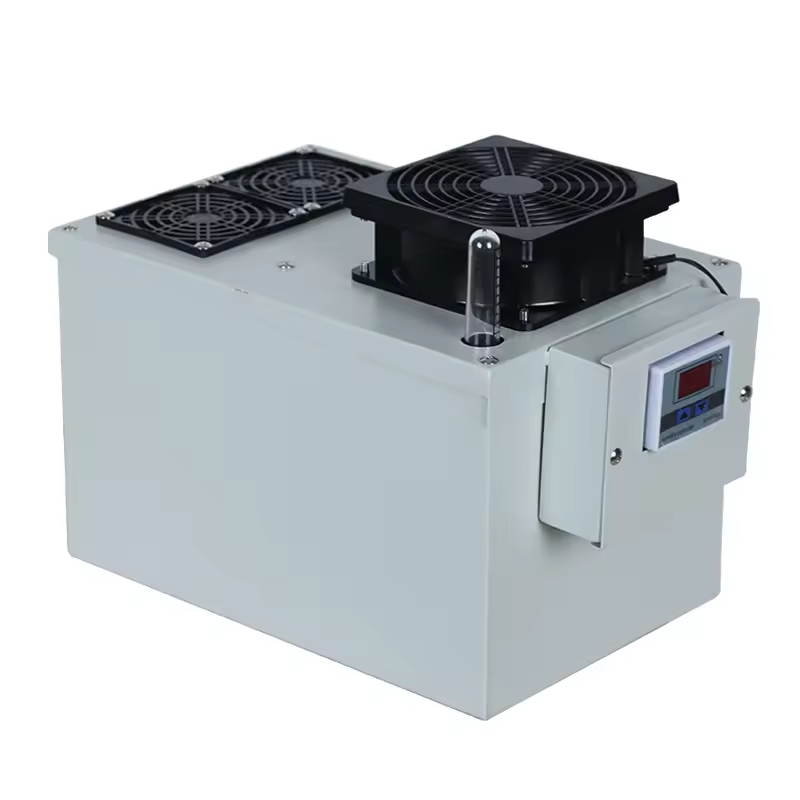

Humidification Unit for Cigar Cabinet

Name: Humidification Unit for Cigar Cabinet
Price: 230 USD
Availability: InStock

$230.00 USD $500.00 USD Save $270.00 USD

Shipping calculated at checkout.

Quantity

Automatic Humidity Control for Cigar Cabinets

Protect Your Cigars with Stable, Even Humidity

Designed for single-door, double-door and commercial cigar cabinets, this electronic humidification system monitors cabinet humidity and automatically adds moisture when needed. Fan-assisted circulation helps distribute humidified air throughout the cabinet, while the large 8.8 L water capacity reduces frequent refilling.

Automatic Operation

Set the humidity start and stop points. The unit runs when humidity falls below the selected level and returns to standby after the target is reached.

Real-Time Monitoring

The digital control panel displays the detected humidity so you can check cabinet conditions and adjust the set points as required.

Fan-Assisted Circulation

A built-in fan moves air through the wet filter media to improve evaporation and circulate humidified air more evenly inside the cabinet.

Large 8.8 L Tank

The high-capacity reservoir supports approximately 10–15 days of typical operation between refills. Actual runtime varies by cabinet seal, climate and door-opening frequency.

Large-Cabinet Coverage

Suitable for enclosed cigar-storage spaces from approximately 0.3 to 2.0 m³ (10.6–70.6 cu ft), depending on cabinet construction and ambient conditions.

Cabinet-Ready Design

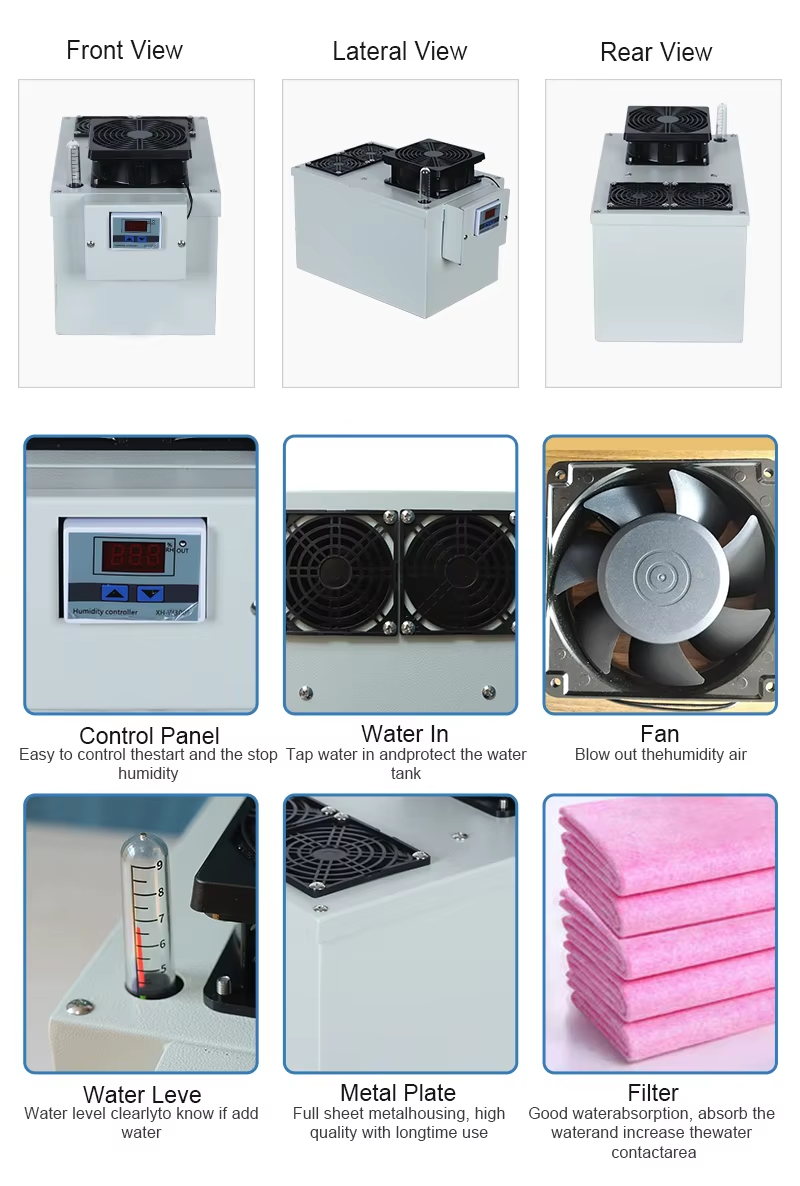

Durable metal housing, water inlet, water-level indicator and replaceable wet media make the system practical for everyday cigar cabinet use.

How the Humidification System Works

Humidity sensing: The sensor detects the relative humidity inside the cigar cabinet and sends the reading to the controller.
Automatic response: When humidity drops to the selected start point, the humidifier begins operating automatically.
Evaporative humidification: Wet filter media draws water from the reservoir. The fan passes dry cabinet air through the moist media, increasing humidity without spraying visible mist directly onto cigars.
Automatic standby: After the selected stop point is reached, the unit enters standby and waits for the next humidity cycle.

Product Specifications

Item	Specification	Item	Specification
Model	001	Power Consumption	17 W
Power Supply	110 V / 60 Hz	Water Capacity	8.8 L / 2.32 US gal
Recommended Cabinet Volume	0.3–2.0 m³ / 10.6–70.6 cu ft	Typical Refill Interval	Approximately 10–15 days*
Product Dimensions	352.2 × 200 × 190 mm / 13.87 × 7.87 × 7.48 in	Carton Dimensions	430 × 270 × 300 mm / 16.93 × 10.63 × 11.81 in
Net Weight	4.1 kg / 9.0 lb	Gross Weight	5.0 kg / 11.0 lb
Working Temperature	1–40°C / 34–104°F	Feed Water Temperature	1–35°C / 34–95°F
Recommended Water	Distilled or purified water. Softened and properly filtered tap water may also be used where water quality is suitable.

*Refill interval and effective coverage vary with ambient humidity, cabinet sealing, cabinet volume, door-opening frequency, stored contents and selected RH settings.

Quick Setup

Place the unit: Position the humidifier level at the bottom of the cigar cabinet. Keep the air inlet and outlet unobstructed.
Position the sensor: Place the humidity sensor in the main storage area, away from direct airflow, wet surfaces, lights and the water outlet.
Add water: Fill through the water inlet with distilled or purified water. Watch the level indicator and do not overfill.
Connect power: Plug the unit into a suitable 110 V / 60 Hz outlet. Press the power button if the screen displays OFF.
Set humidity: Choose the start and stop RH values on the control panel. Many cigar-storage applications use approximately 65–72% RH, but the preferred setting depends on cigar type and storage conditions.
Allow stabilization: After initial setup or a large refill, keep the cabinet closed and allow time for the cabinet, cedar and cigar boxes to reach equilibrium.

Placement Tips for More Even Humidity

Install the humidifier on a stable, level surface at the bottom of the cabinet.
Leave open space around the fan inlet and humidified-air outlet.
Do not place cigar boxes directly against air vents.
For tall or densely loaded cabinets, leave small gaps around shelves and boxes so air can circulate vertically.
Position the sensor near the center of the storage zone—not directly above the humidifier.
During the first several days, compare the display with a calibrated independent hygrometer and adjust the set points if required.

Water and Maintenance

Use clean water: Distilled or purified water helps reduce mineral deposits, odors and buildup in the tank and wet media.
Do not overfill: Stop filling before the level exceeds the maximum mark.
Check regularly: Inspect the water level and cabinet humidity at least weekly until you know the normal refill pattern for your installation.
Clean the tank: Disconnect power before maintenance. Empty and wipe the tank periodically with a clean, soft cloth; do not use strongly scented cleaners.
Inspect the wet media: Clean or replace the filter/wet media when airflow is reduced, mineral residue is visible or an odor develops.

Frequently Asked Questions

What cabinet size is this humidifier designed for?

It is designed for enclosed cigar cabinets of approximately 0.3–2.0 m³ (10.6–70.6 cu ft). Effective coverage depends on the cabinet seal, ambient climate, shelf layout and how often the doors are opened.

Does it regulate humidity automatically?

Yes. After you set the start and stop humidity values, the unit automatically operates when humidity is low and returns to standby after the stop value is reached.

What water should I use?

Distilled or purified water is recommended. It helps reduce mineral buildup and keeps the tank and wet media cleaner. Avoid untreated hard water.

How often should I add water?

Under typical cabinet use, the 8.8 L tank may need refilling about every 10–15 days. Dry climates, frequent door opening, a larger cabinet or a higher RH setting can shorten the interval.

Where should the humidity sensor be placed?

Place it inside the main cigar-storage zone, ideally near the center of the cabinet. Keep it away from direct humidified airflow, wet surfaces, heat from lighting and the door opening.

Will the humidifier control cabinet temperature?

No. This model controls humidity only. It does not provide active cooling or heating.

Can it be shipped with a cigar cabinet?

Yes. When ordered with a compatible CigarCabty cabinet, the humidification system can be packed and shipped together so the main components arrive as one storage solution.

What warranty is included?

The humidifier includes a one-year limited warranty. Contact CigarCabty support with your order information, photos or video if technical assistance is required.
